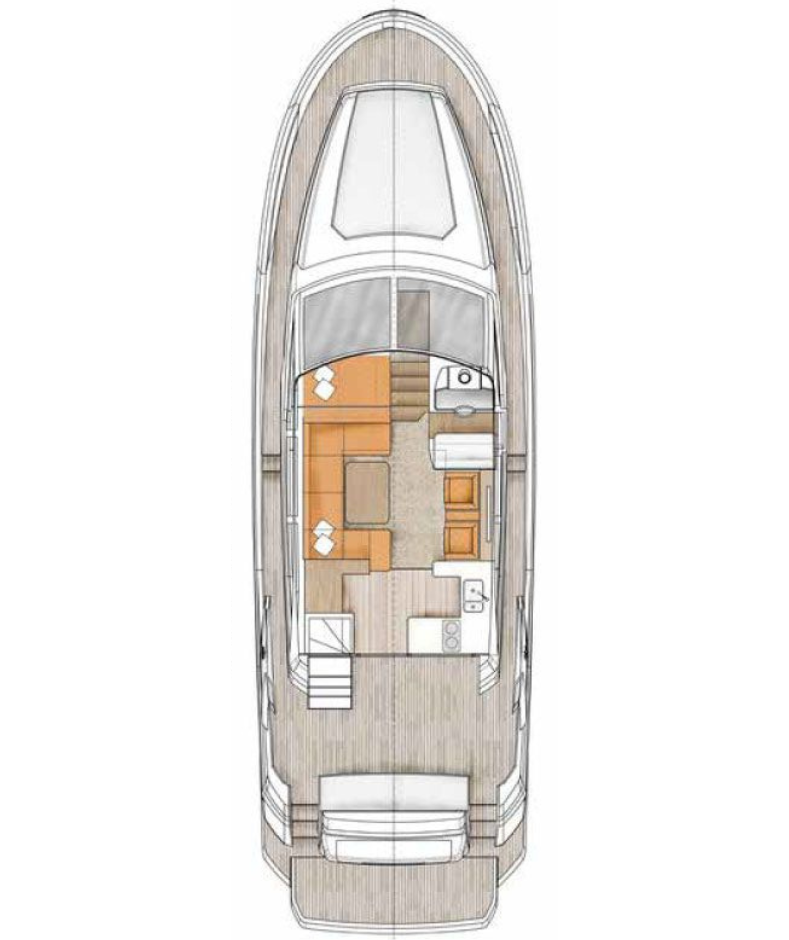

Greenline 45 Fly, Pepper (2023)

Control panel

The main power switches for service and engine batteries are located on the right side under the main panel.

Main switches

By turning off service switch all the electricity on board shuts down. The possibility is primarily used in an emergency situation, for example in case of fire.

Fuses

Fuses are located when you enter the saloon on the left.

Shore power indicator

Inverter

Shore Power Connection

Use the Correct Shore Power Cable provided in the boat and check that the cable is in good condition, without any frayed ends or exposed wires. If you see any issues or anything that appears to be faulty with the cable, immediately notify our technicians and report the problem.

Connect to Boat's Inlet: Plug the boat end of the power cable into the shore power inlet on the boat. Ensure the connection is tight and secure and be careful you got the right inlet (Figure 2)

Connect the Cable to the Shore Power Source: Plug the shore end of power cable into the marina's shore power pedestal. Make sure the connection is secure and that the plug is fully inserted into the pedestal socket.

Check Your Boat's Electrical System: After establishing the shore power connection, check your boat's electrical panel to ensure that power is being correctly distributed and that all systems are functioning properly (Figure 3).
Additionally, you can check in the engine room, in the cockpit, to see if the green lights (Figure 4) are on - one is an indicator for the air conditioner and the other for shore power. If the green light is not on, the power is not properly connected.(Figure 4).

When connecting and disconnecting to a shore power supply, you can minimise the risk of electrical shock and fire hazards by:
1. Connecting shore power cables at the yacht end before connecting to the mains supply; shore power connection sockets is provided in a cockpit locker.
2. Keeping shore power cables away from the water. Never use the shore power cable until fully dry, should a connector accidentally fall in the water.
3. Disconnect the shore power cable at the mains before disconnecting from the yacht.
4. Securing the shore power socket caps after use to avoid the ingress of water.

Instructions for Emptying the Black Water Tank

1. Activate the System: Turn on the switch labeled "Black Water" (refer to Figure 1).

2. Start the Pump-Out Process: Press the "Black Water Pumpout" switch (refer to Figure 2).

3. Monitor and Shut Off: After the indicator shows that the tank is empty, turn off the system by pressing the "Black Water" switch (Figure 1) again to deactivate it.

Toilet

Toilets are equipped with the electric pumps. In each toilet, there are 2 buttons - by pushing the lower button the water goes in and out of the bowl at the same time. If you push the upper button to the left, water will only go in the bowl. If you push it to the right, water will only go out.

CAUTION!!!!
DO NOT throw paper tissues, napkins or other garbage in the toilet bowl because it may clog the drain pipes.
To avoid unpleasant situation and extra expenses, please dispose the toilet paper and other garbage into a plastic bag.

Seacocks

Engine compartment

All engines are regularly maintained by our mechanics.

Nevertheless, to be sure it is working properly, check the oil and water levels regularly, as well as inspecting the engine visually.

The procedure of controlling the engine will be elaborated by our skippers during the check-in.

Engine control panel

Bowthruster

Interior and exterior instruments

Anchor and chain compartment + windlass

It is recommended to release the anchor manually, because sometimes during the anchoring maneuver the winch might be too slow considering the speed of the moving boat.

During the maneuver please attach the compartment hatch to the fence using the provided rope with the hook. Please make sure that the anchor doesn't hit the bow during anchoring procedure.
When the anchor is not in use, attach it to the bollard as a safety measure.

CAUTION!!!
Just before you start lifting the anchor, engage the forward gear for 2-3 seconds (with minimum gas, just to get a slight push forward in the direction of the anchor). That way you will prevent the windlass to pull the whole boat, which can seriously damage it.
To avoid injury, wear gloves and shoes while operating the windlass.
The chain is marked every 10 m with a red mark.

Cockpit shower

Dinghy

The dinghy is located on the aft platform, and it simply goes down and rises from the sea using the platform rail. It is necessary to fasten it with the ropes and the hydraulic gangway when driving.

To avoid damage to impeller, please always start the outboard engine in water.
An outboard engine is always located on a dinghy and it is necessary to boot up in fast navigation. When entering, it is necessary to lower the outboard engine to prevent damage to the engine and other vessels if contact occurs. If you tow it behind the boat, there is a chance of losing it along the way, and that case is not covered by any insurance.

Also, DO NOT tow the dinghy while the outboard engine is still mounted on it.

Instructions for Opening the Cockpit Window

Adjusting the Handles: Locate the black 'L'-shaped handles on the window. Position the handles to the opening position as shown in Figure 1, Figure 2 and Figure 3.

Opening the Window: Once the handles are correctly positioned, gently push the window outward to open it.
Follow these steps to safely and efficiently open the cockpit window.

Bilge pump

Lifejackets & Liferaft
