Bavaria Cruiser 45 - 4 cab., Enya (2013)

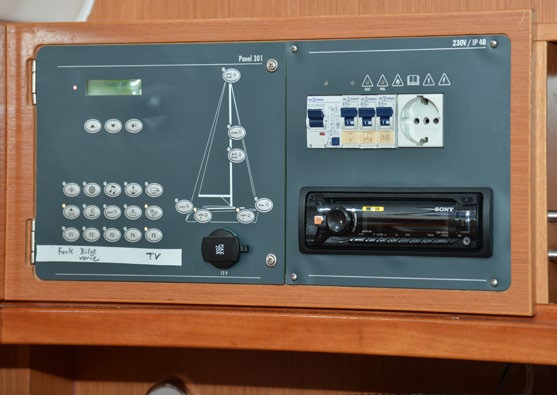

Control panel

Fuses and shore power indicator

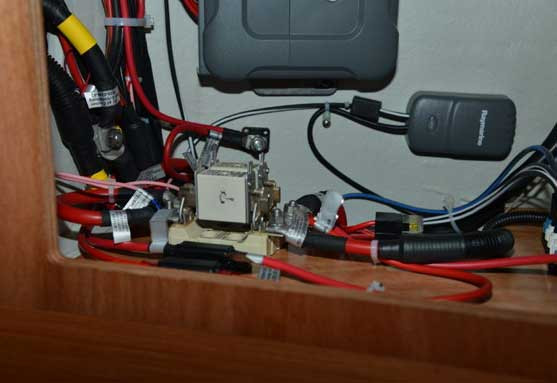

Windlass fuse

Inverter / main switch

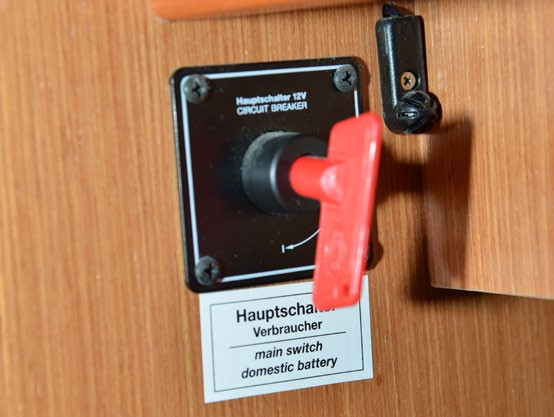

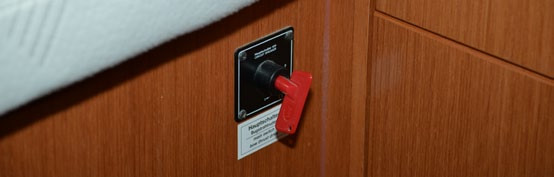

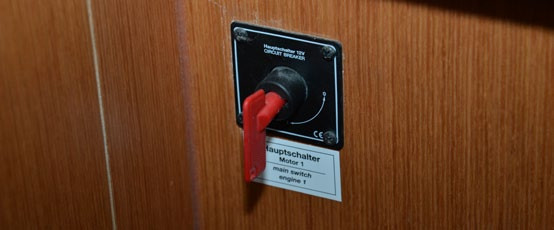

The main power switch (1) for service batteries is located under the navigation table, switch for engine battery (2) is under the bed in the left stern cabin and switch for the bow thruster battery (3) is in the fron right cabin under the bed.

By turning them counter-clockwise, all the electricity on board shuts down. This possibility is primarily used in an emergency situation, for example in case of a fire. (slike 1.4 glavna sklopka, 1.4 motor i 1.4 thruster)

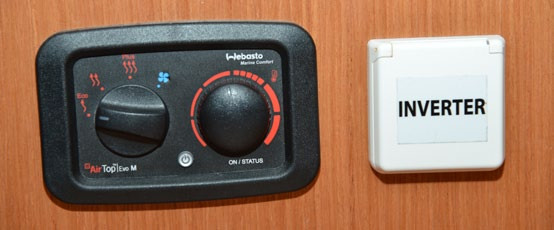

Inverter switch (4) is located on the control panel. Please make sure that all devices connected to the inverter should be used only as long as necessary, for example until the mobile phone battery is charged, after which it should immediately be disconnected.

Keep in mind that the inverter consumes the electricity even if there is no device connected to it, so in order to preserve energy, please switch it off after every use.

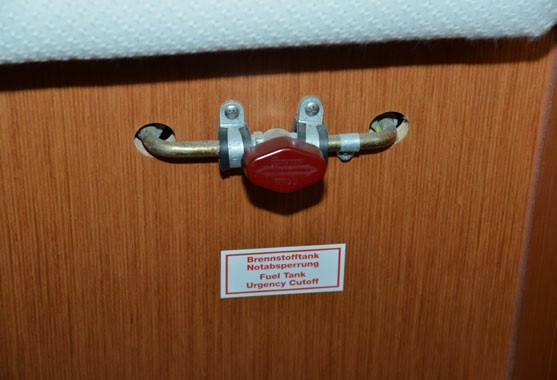

Emergency fuel cutoff valve

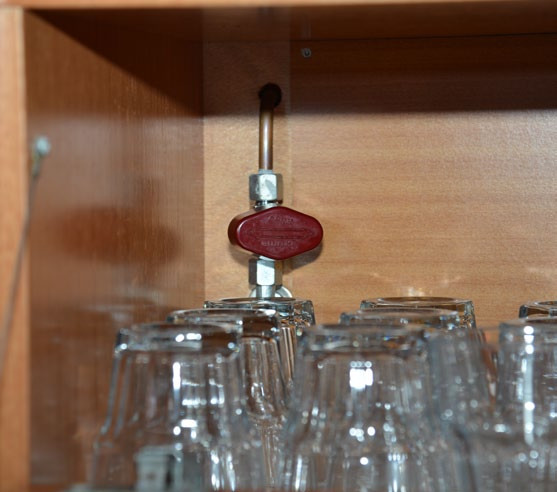

Gas valve in the galley

Gas valve in in the cockpit

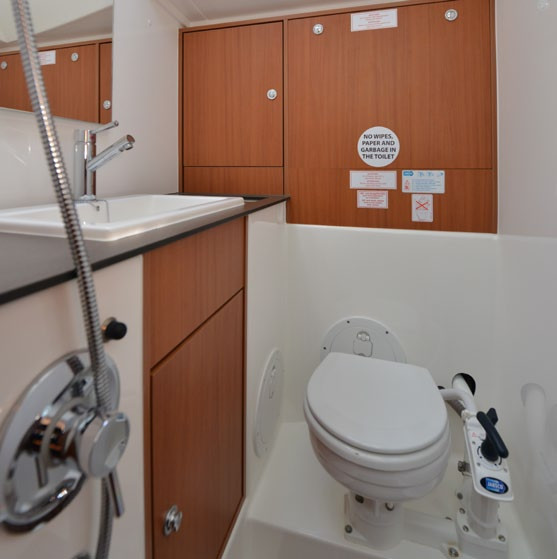

Toilet

By pulling and pushing the lever you can pump the seawater in and out of the toilet bowl.
If the small lever on the back of the pump is in the left position, the water goes in and out at the same time. If it's in the right position, the water only goes out.
After the use leave the small lever in that position in order to avoid the water return.
Make sure both seacocks are open when using the toilet.
After the use please close both of them.

CAUTION!!!

DO NOT throw paper tissues, napkins or other garbage in the toilet bowl because it may clog the drain pipes.
To avoid unconfortable situation and extra expenses, please dispose the toilet paper and other garbage into a plastic bag.

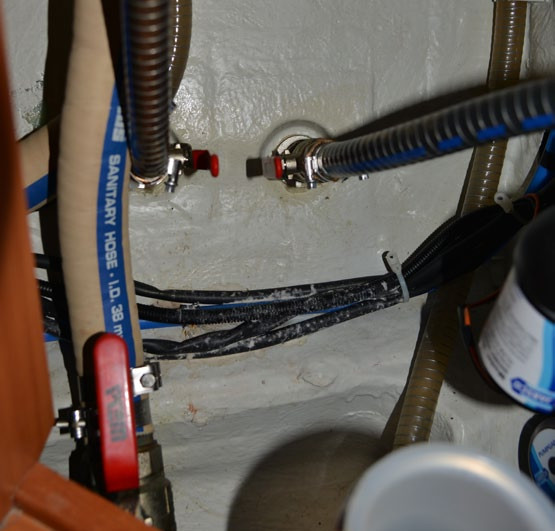

Seacocks

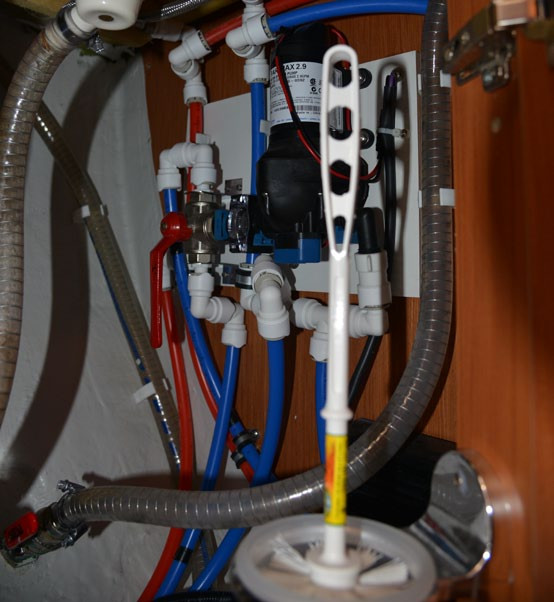

Water supply switching lever

It is located under the washbasin in the rear bathroom.

CAUTION!!!

When one water tank empties, immediately close all the running taps in order to avoid the water pump to take air into the system. Turn the lever to switch the water supply to the other tank and open the tap.
The water should start flowing after couple of seconds.

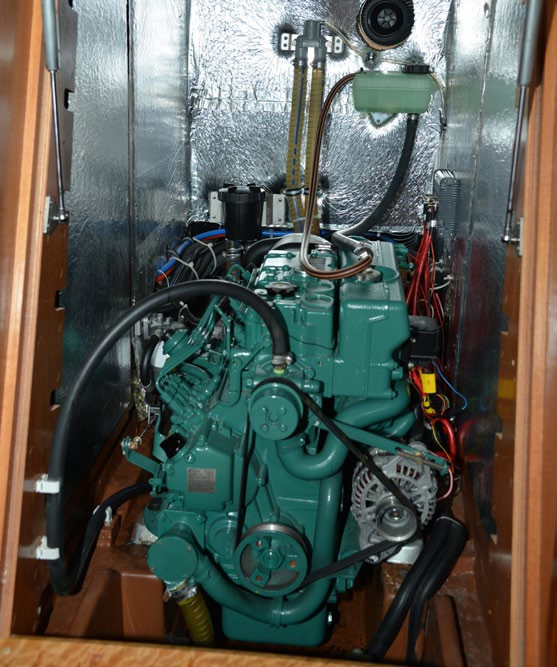

Engine compartment

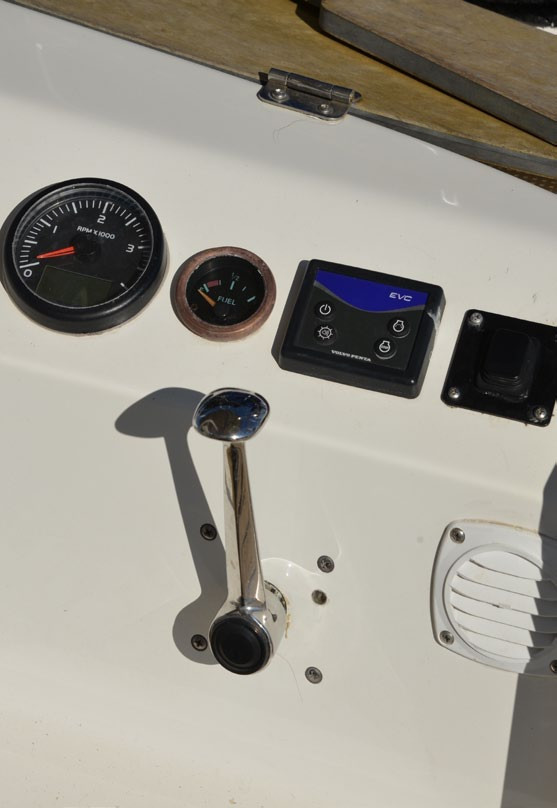

Engine control panel: engine start / stop, gear lever, fuel level indicator, hour meter

Starting the engine:

1. Before starting the engine, push the button on the gear lever and the gear lever a bit forward in order to increase RPMs without engaging the propeller.
2. Switch on the electric contact (button on the upper left side of the EVC panel)
3. Hold the start switch with light pressure (upper right on the EVC panel) for about 10 seconds (preheat)
4. Push the start button fully to start the engine

Stopping the engine:

1. Push the stop button (lower right on the EVC panel)
2. Switch off the electric contact

Please return the gear lever to the neutral position before shutting down the engine.
Cruising speed is at abput 2300 RPM. Faster than that puts great tension on the engine and the clutch and could result in damage.

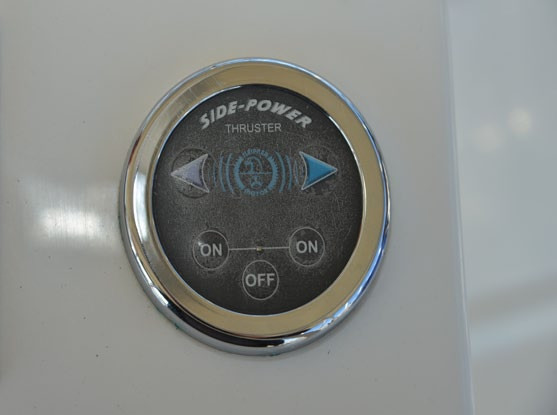

Bow thruster

To engage the bow thruster, push both ON buttons at the same time.

Choose the direction by pushing one of the arrows.

DO NOT use it for more than 10 seconds without stop.

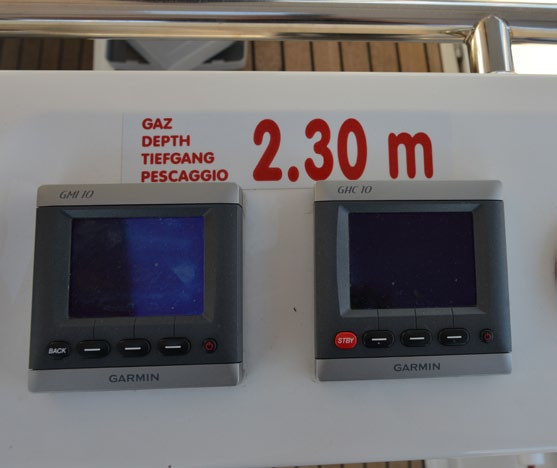

Exterior instruments

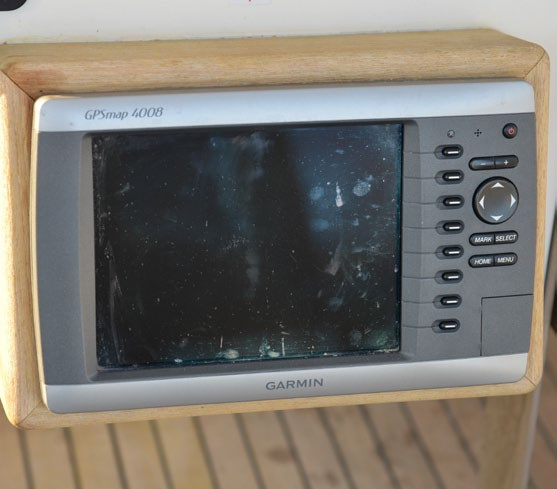

Chartplotter

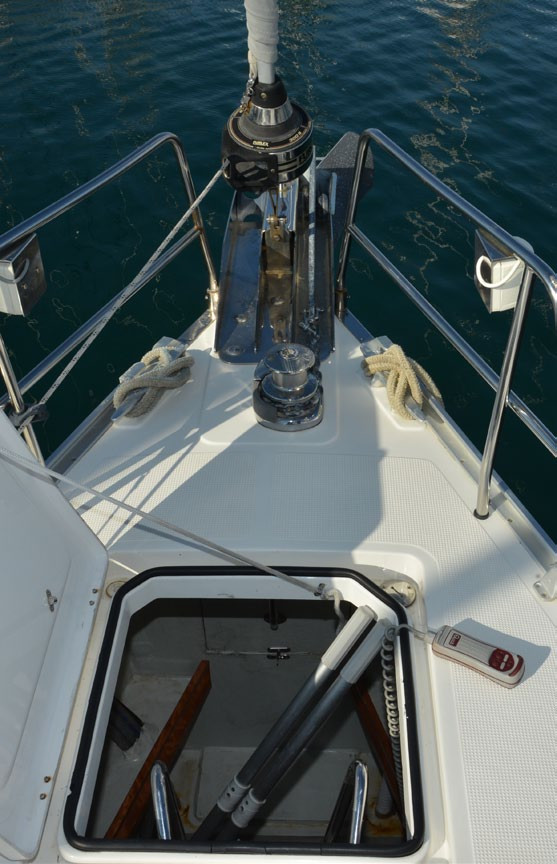

Anchor and chain compartment + Electric windlass

It is recommended to release the anchor manually, because sometimes during the anchoring maneuver the winch might be too slow considering the speed of the moving boat.

During the maneuver please attach the compartment hatch to the fence using the provided rope with a hook.

Please make sure the anchor doesn't hit the bow during anchoring procedure.

When the anchor is not in use, attach it to the bollard as a safety measure.

CAUTION!!!

Just before you start lifting the anchor, engage the forward gear for 2-3 seconds (with minimum gas, just to get a slight push forward in the direction of the anchor). That way you will prevent the windlass to pull the whole boat, which can seriously damage it.

To avoid injury, wear gloves and shoes while operating the windlass.

The chain is marked every 10m with a red mark.

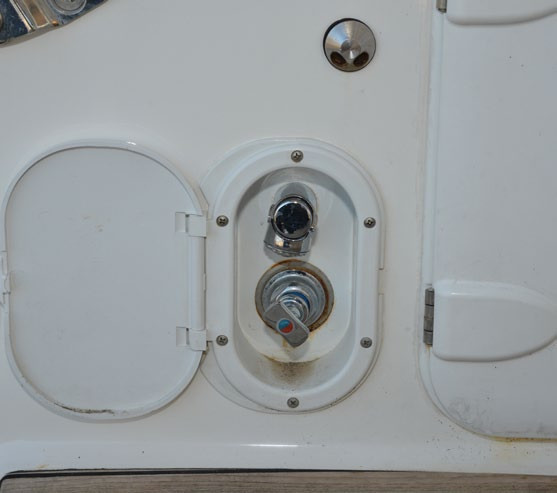

Cockpit shower

The boat is equipped with a cockpit shower.

Please pull out the hose with care to avoid damage.

After the use check whether the tap is closed.

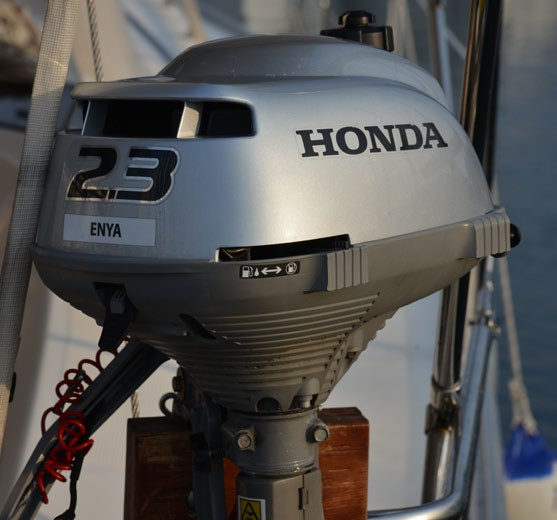

Dinghy + Outboard engine

To avoid damage of the impeller, please always start the outboard engine in water.

When the dinghy is not in use, please return it to its position on the deck; if you tow it behind the boat, there is a chance of losing it along the way, and that case is not covered by any insurance.

Also DO NOT tow the dinghy while the outboard engine is still mounted on it.

After each use please return the outboard engine to its place onboard.

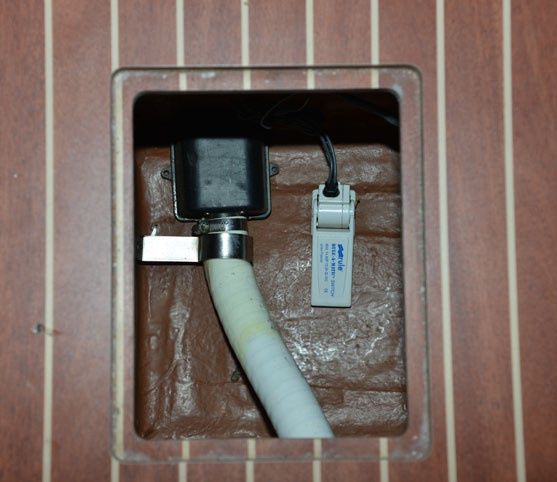

Bilge pump

Automatic bilge pump is located under the floorings, near the navigation table.

If there is water in the bilge, the floating switch starts the pump.

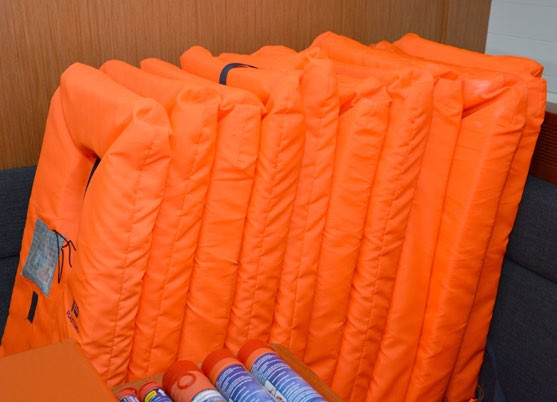

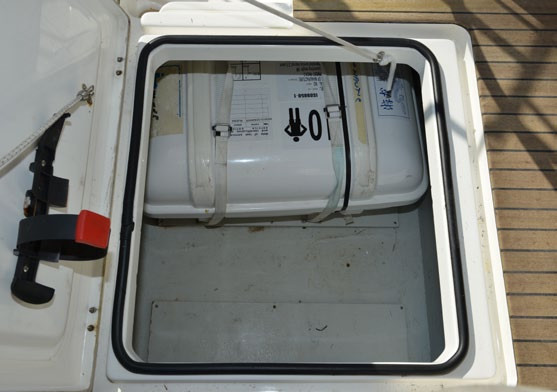

Lifejackets and liferaft

All lifejackets will be in the sallon during the check-in ready for your inspection, so please during the check-out leave them in the same place so we can check them.

Liferaft is located under the flooring in the cockpit.
